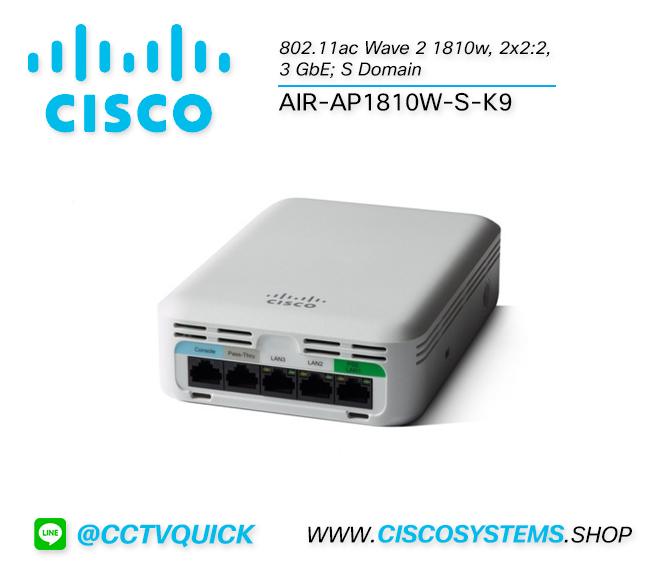

EOL AIR-AP1810W-S-K9 (Cisco Wireless Access Point) ** AIR-AP1815W-S-K9

Authentication and security

• Advanced Encryption Standard (AES) for Wi-Fi Protected Access 2 (WPA2)
• 802.1X, RADIUS authentication, authorization and accounting (AAA)
• 802.11i

Software

• Cisco Unified Wireless Network Software with AireOS Wireless Controllers Release 8.2.111.0 or later

Maximum clients

• Maximum number of associated wireless clients: 200 per Wi-Fi radio, in total 400 clients per access point

802.11ac

• 2x2 single-user/multiuser MIMO with two spatial streams
• Maximal ratio combining (MRC)
• 20-, 40- and 80-MHz channels
• PHY data rates up to 866.7 Mbps (80 MHz on 5 GHz)
• Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Rx)
• 802.11 Dynamic Frequency Selection (DFS)
• Cyclic shift diversity (CSD) support

Ethernet ports

• Authentication with 802.1X or MAC filtered
• Dynamic VLAN or per port
• Traffic locally switched or tunneled back to wireless LAN controller

Bluetooth (future availability)

• Integrated Bluetooth 4.1 (including BLE) radio
• Maximum transmit power: 5 dBm
• Antenna gain: 2 dBi

Integrated antennas

• 2.4 GHz, gain 2 dBi
• 5 GHz, gain 4 dBi

Interfaces

• One 10/100/1000BASE-T PoE uplink port
• Management console port (RJ-45)
• Three 10/100/1000BASE-T ports (local Ethernet ports), including one PoE out port:

◦   PoE out provides 802.3af when access point is powered by Cisco local power supply (AIR-PWR-C=, AIR-PWR-D=), or ~6.5W when powered by 802.3at, or no output when powered by 802.3af

• One passive pass-through port RJ-45 (back to bottom)
• DC power connector

Indicators

• Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors
• Per-port status for local Ethernet ports
• For privacy, LEDs are automatically turned off when the access point joins a controller. LEDs may be enabled to be administratively - see configuration guide.

Dimensions (W x L x H)

• Access point (without mounting bracket): 6.5 x 4.5 x 1.6 in. (165 x 114 x 41 mm)

Weight

• Access point without mounting bracket or any other accessories: 1.2 lb (560 g)

Environmental

• Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C)
• Nonoperating (storage) maximum altitude: 25°C, 15,000 ft (4,500m)
• Operating temperature: 32° to 104°F (0° to 40°C)
• Operating humidity: 10% to 90% percent (noncondensing)
• Operating maximum altitude: 40°C, 9843 ft (3,000m)

System

• 512 MB DRAM
• 256 MB flash
• 1.4 GHz system dual-core CPU

Input power requirements

• 44 to 57V DC
• Optional power supply and power injector: 100 to 240V AC; 49 to 60 Hz
