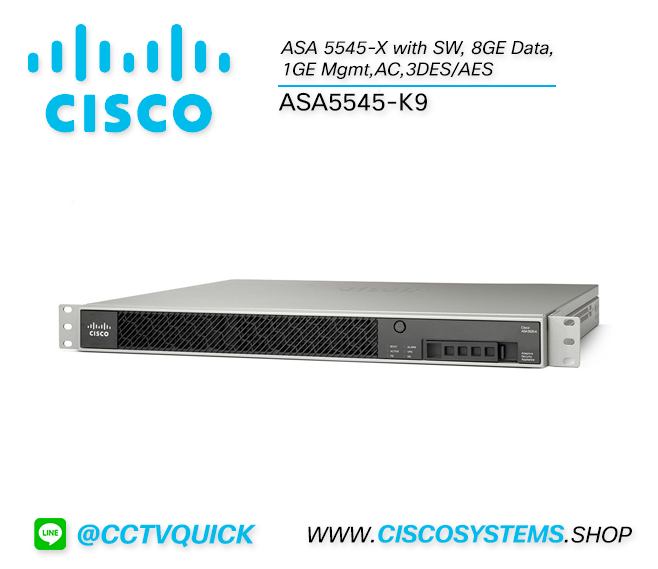

ASA5545-K9 (ASA 5545-X with SW, 8GE Data,1GE Mgmt,AC,3DES/AES)

ASA5545-K9 Specification

Stateful Inspection Throughput (Maximum)

3 Gbps

Stateful Inspection Throughput (Multiprotocol)

1.5 Gbps

IPS Throughput

900 Mpbs

Next-Generation Throughput(Multiprotocol)

1 Gbps

3DES/AES VPN Throughput

400 Mbps

Users/Nodes

Unlimited

IPsec VPN Peers

2,500

Cisco Cloud Web Security Users

5,000

Premium AnyConnect VPN Peers(Included/Maximum)

2/2500

Concurrent Connections

750,000

New Connections/Second

30,000

Virtual Interfaces (VLANs)

300

Security Contexts (Included/Maximum)

2; 50

High Availability

Active/Active and Active/Standby

Expansion Slot

1 interface card

User-Accessible Flash Slot

-

USB 2.0 Ports

2

Integrated I/O

8 GE Copper

Expansion I/O

6 GE Copper or 6 GE SFP

Serial Ports

1 RJ-45 console

Solid State Drive

2 slot, RAID 1

120 GB MLC SED

Memory

12 GB

Minimum System Flash

8 GB

System Bus

Multibus architecture

Temperature

23 to 104°F (-5 to 40°C)

Relative Humidity

90 percent noncondensing

Altitude

Designed and tested for 0 to 10,000 ft (3050m)

Shock

50G, 2 m/sec

Vibration

0.41 Grms2 (3 to 500 Hz) random input

Acoustic Noise

64.2 dBa max

Temperature

-13 to 158ºF (-25 to 70ºC)

Relative Humidity

10 to 90 percent noncondensing

Altitude

Designed and tested for 0 to 15,000 ft (4572m)

Shock

70G, 4.22 m/sec

Vibration

1.12 Grms2 (3 to 500 Hz) random input

AC Range Line Voltage

100 to 240 VAC

AC Normal Line Voltage

100 to 240 VAC

AC Current

4.85A

AC Frequency

50/60 Hz

Dual-Power Supplies

Yes

DC Domestic Line Voltage

-40.5 to 56 VDC (-48 VDC nominal)

DC International Line Voltage

-55 to -72 VDC (-60 VDC nominal)

DC Current

15A (maximum input)

Steady State

86W

Maximum Peak

125W

Maximum Heat Dissipation

427 BTU/hr

Form Factor

1 RU, 19-in. rack-mountable

Dimensions (H x W x D)

1.67 x 16.7 x 19.1 in. (4.24 x 42.9 x 48.4 cm)

Weight (with AC Power Supply)

16.82 lb (7.63 kg) with single power supply

18.86 lb (8.61 kg) with dual power supply

Safety

IEC 60950-1: 2005, 2nd  Edition EN 60950-1:2006+A11: 2009 UL 60950-1:2007, 2nd  Edition; CSA C22.2 No. 60950-1-07, 2nd  Edition

Electromagnetic Compatibility (EMC)

CE: EN55022 2006+A1: 2007 Class A; EN55024 1998+A1:2001+A2:2003; EN61000-3-2 2009; EN61000-3-3 2008;

FCC: CFR 47, Part 15 Subpart B Class A 2010, ANSI C63.4 2009; ICES-003 ISSUE 4 FEBRUARY.2004; VCCI: V-3/2011.04; C-TICK: AS/NZS CISPR 22,2009 KC: KN22 & KN24

Industry Certifications

In process
