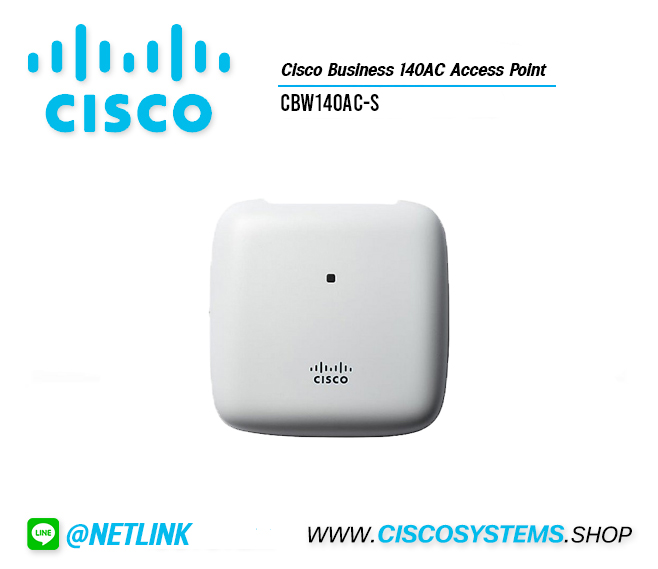

CBW140AC-S (Cisco Business 140AC Access Point)

MU-MIMO

Multi-User (MU) Multiple-Input Multiple-Output (MU-MIMO) technology allows transmission of data to multiple 802.11ac Wave 2–capable clients simultaneously to improve the client experience. Prior to MU-MIMO, 802.11n and 802.11ac Wave 1 access points could transmit data to only one client at a time, typically referred to as Single-User MIMO (SU‑MIMO).

802.11ac Wave 2 with 2x2:2 MIMO technology uses two spatial streams when operating in SU-MIMO or MU-MIMO mode, offering 867-Mbps rates for more capacity and reliability than competing access points.

Simplified management

Deploy and configure multiple Cisco Business access points and mesh extenders easily without a physical controller, using Cisco Business Mobile app . Optional multisite remote management is available through the Cisco FindIT Network Management.

Mesh technology support

Mix and match Cisco Business mesh extenders or access points to increase WiFi coverage throughout your business.

Flexible deployment

Flexible deployment models supporting multiple concurrent use cases required by small businesses, including point of sale systems, surveillance cameras, guest access, and more.

Authentication and security

Maximum clients

Maximum # of Access Points

Max # of Mesh Extenders

802.11ac

Ethernet ports

Data rates supported

802.11a: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps

802.11b/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps

802.11n data rates on 2.4 GHz: 6.5 to 300 Mbps (MCS0-MCS15, HT 20/40)

802.11ac data rates on 5 GHz: 6.5 to 867 Mbps (MCS0-MCS9)

Maximum number of nonoverlapping channels

A (A regulatory domain):

B (B regulatory domain):

C (C regulatory domain):

D (D regulatory domain):

E (E regulatory domain):

F (F regulatory domain):

G (G regulatory domain):

H (H regulatory domain):

I (I regulatory domain):

K (K regulatory domain):

N (N regulatory domain):

Q (Q regulatory domain):

R (R regulatory domain):

S (S regulatory domain):

T (T regulatory domain):

Z (Z regulatory domain):

Note: This varies by regulatory domain. Refer to the product documentation for specific details for each regulatory domain.

Available transmit power settings

2.4 GHz

Up to 20 dBm

5 GHz

Up to 20 dBm

Note: The maximum power setting will vary by channel and according to individual country regulations. Refer to the product documentation for specific details.

Integrated antennas

Interfaces

Indicators

Dimensions (W x L x H)

Weight

Environmental

◦      Temperature: 32° to 104°F (0° to 50°C)

◦      Humidity: 10% to 90% (noncondensing)

◦      Maximum altitude: 9843 ft (3000 m) at 40°C

◦      Temperature: –22° to 158°F (-30° to 70°C)

◦      Humidity: 10% to 90% (noncondensing)

◦      Maximum altitude: 15,000 ft (4500 m) at 25°C

System

Powering options

Power draw

Mounting and physical security

Included with the access point:

Warranty

Cisco Business limited lifetime hardware warranty

Free software updates, no service contract required

Compliance

◦      UL 60950-1

◦      CAN/CSA-C22.2 No. 60950-1

◦      UL 2043

◦      IEC 60950-1

◦      EN 60950-1

◦      FCC Part 15.247, 15.407

◦      RSS-247 (Canada)

◦      EN 300.328, EN 301.893 (Europe)

◦      ARIB-STD 66 (Japan)

◦      ARIB-STD T71 (Japan)

◦      EMI and susceptibility (Class B)

◦      FCC Part 15.107 and 15.109

◦      ICES-003 (Canada)

◦      VCCI (Japan)

◦      EN 301.489-1 and -17 (Europe)

◦      EN 50385

◦      IEEE 802.11a/b/g, 802.11n, 802.11h, 802.11d

◦      IEEE 802.11ac

◦      802.11i, WPA2, WAP3, WPA

◦      802.1X

◦      AES

◦      EAP-Transport Layer Security (TLS)

◦      EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol Version 2 (MSCHAPv2)

◦      Protected EAP (PEAP) v0 or EAP-MSCHAPv2

◦      EAP-Flexible Authentication via Secure Tunneling (FAST)

◦      PEAP v1 or EAP-Generic Token Card (GTC)

◦      EAP-Subscriber Identity Module (SIM)

◦      Wi-Fi Multimedia (WMM)

◦      FCC Bulletin OET-65C

◦      RSS-102
