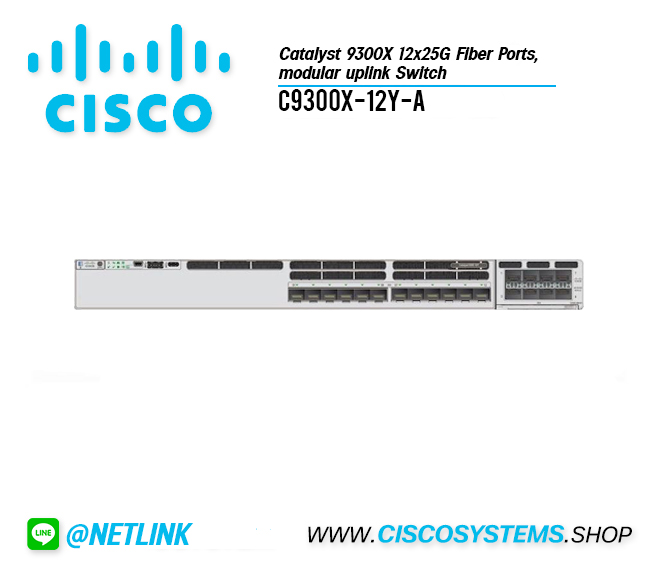

C9300X-12Y-A (Catalyst 9300X 12x25G Fiber Ports, modular uplink Switch)

C9300X-12Y-A Specification

Product Code

C9300X-12Y-A

Description

Catalyst 9300 12-port 25G/10G/1G SFP28 with modular uplinks, Network Advantage

General

Device Type

Switch - 12 ports - L3 - managed - stackable

Enclosure Type

Rack-mountable 1U

Subtype

25 Gigabit Ethernet

Ports

12 x 1/10/25 Gigabit SFP28

Performance

Switching capacity: 1000 Gbps ¦ Switching capacity with stacking: 2000 Gbps ¦ Forwarding rate: 744.04 Mpps ¦ Forwarding rate with stacking: 1488 Mpps

Capacity

IPv4 routing table entries: 39000 ¦ Flexible NetFlow entries: 64000 ¦ Direct IPv4 routes: 24000 ¦ Indirect IPv4 routes: 15000 ¦ IPv6 routing table entries: 19500 ¦ VLAN IDs: 4094 ¦ Switched virtual interfaces (SVIs): 1000 ¦ Multicast routing flow table: 8000 ¦ QoS scale entries: 4000 ¦ ACL scale entries: 5000 ¦ PVST instances: 300 ¦ STP Virtual Ports for PVST: 13000 ¦ STP Virtual Ports for MST: 13000 ¦ Routed ports: 448

MAC Address Table Size

32000 entries

Jumbo Frame Support

9198 bytes

Routing Protocol

OSPF, IS-IS, RIP-1, RIP-2, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng

Remote Management Protocol

SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF

Features

DHCP support, trunking, Syslog support, full duplex mode, Stateful switchover (SSO), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Quality of Service (QoS), Non-Stop Routing (NSR), Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), Cisco StackWise-480 technology, Cisco StackPower technology, Flexible NetFlow (FNF), Multicast Source Discovery Protocol (MSDP), 802.1x authentication, 16MB packet buffer, FTP client, MACsec support, 3 fans, Control plane protection (CoPP), Virtual Extensible LAN (VXLAN), Application Visibility and Control (AVC), Source-Specific Multicast (SSM), integrated Wireshark, VLAN Double Tagging (Q-in-Q), Ethernet over MPLS (EoMPLS), Hierarchical Virtual Private LAN Service (H-VPLS), Private VLAN, Layer 3 VPN (L3VPN) support, Encapsulated Remote SPAN (ERSPAN), Security Group Tag (SGT) caching, Security Group Access Control List (SGACL), IT Service Management (ITSM) integration, third-party IP Address Management (IPAM) integration, Cisco StackWise-1T technology

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at

RAM

16 GB

Flash Memory

16 GB

Status Indicators

Status

Expansion / Connectivity

Interfaces

24 x 1/10/25GBase-X SFP28

Power

Power Device

Internal power supply

Power Provided

715 Watt

Voltage Required

AC 120/230 V (50/60 Hz)

Miscellaneous

Compliant Standards

CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, CCC, ICES-003 Class A, EN 61000-4-5, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, EN 55022 Class A, FCC CFR47 Part 15 A, EN 300 386, TVCN 7317, VCCI V-3/2009 Class A, CAN/CSA-C22.2 No. 60950-1

Dimensions & Weight

Width

17.5 in

Depth

16.1 in

Height

1.7 in

Manufacturer Warranty

Service & Support

Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - consulting - 90 days

Environmental Parameters

Min Operating Temperature

23 °F

Max Operating Temperature

113 °F

Humidity Range Operating

5 - 90% (non-condensing)

Min Storage Temperature

-40 °F

Max Storage Temperature

158 °F

Humidity Range Storage

5 - 90% (non-condensing)
