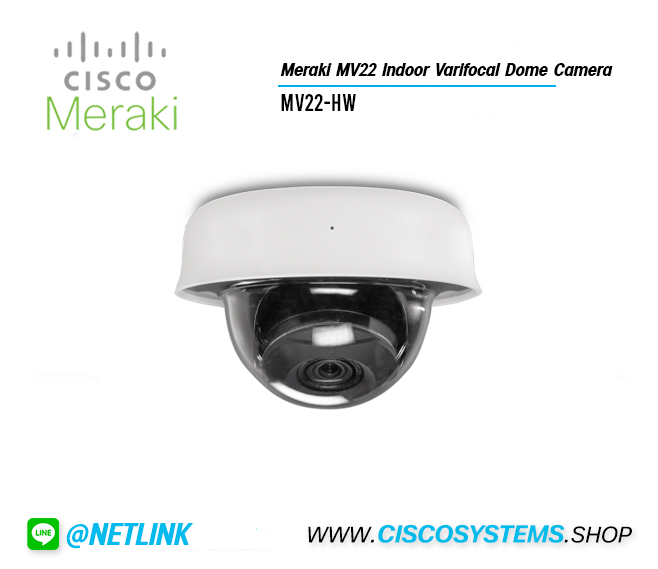

MV22-HW (Meraki MV22 Indoor Varifocal Dome Camera)

Camera

• 1/3” 4MP (2688×1520) progressive CMOS image sensor
• 256GB high endurance solid state storage
• 3-9mm focal length
• f/1.2-2.3 aperture
• Field of view:
  • Horizontal 36° - 122°
  • Vertical 20° - 57°
  • Diagonal 42° - 138°
• Lens adjustment range:
  • Tilt 65°
  • Rotation +/- 90°
  • Pan 354°
• 1/30s to 1/32,000s shutter speed
• Minimum illumination 0.18 Lux (standard recording) and 0.01 Lux (night mode)
• Built-in IR illuminators, effective up to 30m (98ft)

Video

• 1080p HD video recording (1920×1080) with H.264 encoding, up to 20fps
• Cloud augmented edge storage (locally stored video with metadata in the cloud)
• Optimized retention settings (scheduling and motion-based) for variable retention
• Up to 40 days of 24/7 continuous video storage per camera*
• Direct live streaming with no client software (native browser playback)**
• Stream video anywhere with automatic cloud proxy
• High dynamic range (HDR)

Data Security

• Full disk encryption (AES 256-bit)
• Automatically purchased and provisioned TLS certificates (publicly-signed)
• Management encryption and two-factor authentication

Networking

• 1x 10/100/1000 Base-T Ethernet (RJ45)
• Dual band WLAN with antenna diversity supporting 2.4GHz and 5GHz
• 802.11 a/b/g/n/ac
• DSCP traffic marking

Power

• Power consumption 12.75W maximum via 802.3af PoE

Features

• Cloud managed with complete integration into the Meraki dashboard
• Plug and play deployment with self-configuration
• Dynamic day-to-night transition with IR illumination
• Noise optimized motion indexing engine with historical search
• Shared video wall with individual layouts supporting multiple cameras
• Selective export capability with cloud proxy (with watermarked timestamps)
• Highly granular view, review, and export user permissions with SAML integration
• Motion heat maps for relative hourly or day-by-day motion overview
• Motion alerts

Wireless

• 2.4 GHz 802.11b/g/n radio
• 5 GHz 802.11a/n/ac radio
• Supported frequence bands (country-specific restrictions apply):
  • 2.412 - 2.484 GHz
  • 5.150 - 5.250 GHz (UNII-1)
  • 5.250 - 5.350 GHz (UNII-2)
  • 5.470 - 5.600, 5.660 - 5.725 GHz (UNII-2e)
  • 5.725 - 5.825 GHz (UNII-3)

802.11ac and 802.11n Capabilities

• 1×1 with one spatial stream
• MU-MIMO support
  • 20 and 40 MHz channels (802.11n)
  • 20, 40, and 80 MHz channels (802.11ac)
• Up to 256 QAM on both 2.4 GHz and 5 GHz bands

Antenna

• Integrated omni-directional antennas (4.4 dBi gain at 2.4 GHz, 6.3 dBi gain at 5 GHz)

Security

• WPA, WPA2-PSK, WPA2-Enterprise with 802.1X
• EAP-TTLS
• TKIP and AES encryption

Environment

• Starting temperature: 0°C - 45°C (32°F - 113°F)
• Working temperature: 0°C - 45°C (32°F - 113°F)

In the box

• Quick start & installation guide
• MV camera hardware
• Wall mounting kit
• Junction box adapter plate

Physical characteristics

• Dimensions 149mm × 97mm (diameter x height)
• Varifocal lens (up to 3× optical zoom)
• Weight without mounting plate 706g
• Weight with mounting plate 842g
• Female RJ45 Ethernet connector
• Multicolor, multifunction status LED
• Reset button

Ratings

• IK08 vandal-resistance

Warranty

• 3 year hardware warranty with advanced replacement
