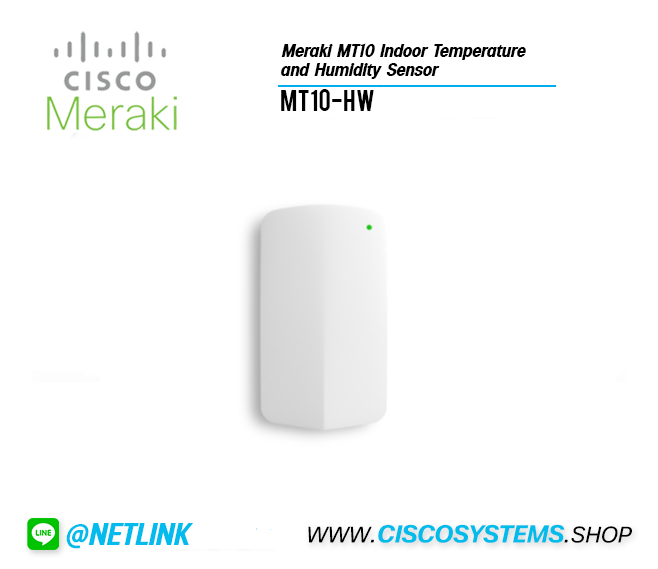

MT10-HW (Meraki MT10 Indoor Temperature and Humidity Sensor)

Electrical

• Antenna type: Omni
• Frequency range: 2.400 – 2.500, 5.150 – 5.875 GHz
• Gain (per antenna element): (C5) 4.9 dbi (2.4) / 4.9 dbi (5)
• Gain (per antenna element): (C6) 4.9 dbi (2.4) / 4.9 dbi (5)
• Polarization: Linear, Vertical/Horizontal
• Half power beamwidth / horizontal: Omni
• Half power beamwidth / vertical: 60°

Sensors

• Temperature
  • Range: 0°C – 55°C (32F° – 131F°)
  • Accuracy: +/- 0.3°C
• Humidity
  • Range: 0 – 95% relative humidity
  • Accuracy: +/- 2.5% relative humidity

Wireless capabilities

• Bluetooth only via MV/MR as gateway
  • Compatible with second-generation MV smart cameras and Wi-Fi 6 MR access points
• Operating frequency:
  • 2.400–2.4835 GHz
• IEEE standard:
  • 802.15.1 (Bluetooth 4.2 Low Energy BLE)

Data logging

• Data sampling
  • Sample polling every two minutes
  • Data reporting to gateway every 20 minutes, or immediately upon threshold violation
• Onboard data storage
  • 4,000 data points (5 days of data at the default sampling rate)
• BLE messages encrypted and authenticated using Cisco Trust Anchor technology

Power

• Two AA batteries or power adapter
• Battery life up to five (5) years
• Power ratings: 5V; 0.1A

Operating environment

• Temperature: 0°C – 55°C (32F° – 131F°)
• Relative humidity: 0-95%
